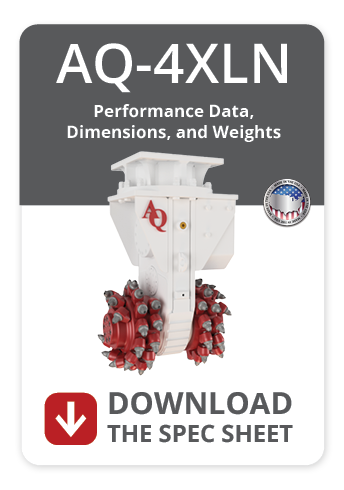

The AQ-4XLN hydraulic drum cutter is designed for trenching applications that require a narrow cutting profile and high cutting performance. Built for mid to large size excavators, the AQ-4XLN delivers the same torque and cutting force as the AQ-4XL, with narrower cutter heads designed for controlled trench dimensions.The concentrated cutting width maximizes cutting force within the trench, helping improve efficiency and reduce unnecessary excavation.
Recommended excavators/carrier size class: 40-55 tons
Hydraulic Power: 215HP (160kW)
| Technical Data | AQ-4XLN |
|---|---|
| Cutting Head Diameter (B) | 29 in (735 mm) |
| Cutting Head Width (A) | 40 in (1.015 mm) |
| Oil Flow | 65-130 gpm (245-495 l/min) |
| Max Pressure | 5,800 psi (400 bar) |
| Max Torque | 28,120 ft lbs (38.125 Nm) |
| Max Cutting Force | 24,068 lbs (107.060 N) |
| Operating Weight | 5,620 lbs (2.555 kg) |
Please note hydraulic power rating should not be exceeded
Quantity of cutter bits for standard drums: 48
