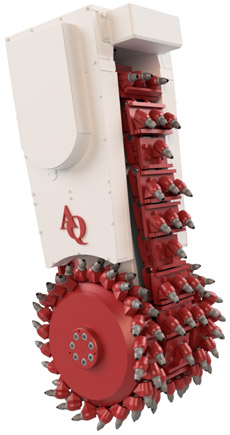

Antraquip chain cutters are built for narrow trenching applications that require control, consistency, and minimal excavation. These attachments use mechanized cutting technology to create straight, uniform trenches without side-to-side movement.
Designed for continuous operation, chain cutters perform effectively in soft to medium-hard rock where trench width, geometry, and material removal must be tightly managed.
Recommended Carrier Range: 22-40 tons
Primary Use: Narrow trench excavation
The cutting chain runs between the drums, allowing material to be removed in a controlled, linear path. This design eliminates the need for side-to-side movement, reducing trench width and limiting excess rock removal.
The result is a clean trench with consistent geometry and reduced downstream work.
| Specs | AQ-600 | AQ-800 |
|---|---|---|
| Excavator Size | 22-30 tons | 30-40 tons |
| Min Cutting Width | 28 in (720 mm) | 31.5 in (800 mm) |
| Torque @ 5000psi | 17,210 ft lbs (23,330 Nm) | 21,900 ft lbs (29,700 Nm) |
| Rated Power | 160 hp (120 Kw) | 215 hp (160 Kw) |
| Weight | 8,000 lbs (3,625 kg) | 8,200 lbs (3,720 kg) |
