Sensitive Demolition: AQ-4 and AQC-180 Remove 100-Year-Old Concrete Wall Within Strict Seismic Limits
The Chicago Transit Authority (CTA) needed to remove 100-year-old concrete embankment walls and aging rail lines to make room for new train tracks, bridges, and open pedestrian space as part of a major rail infrastructure upgrade. The challenge was completing the demolition while working inches away from existing infrastructure and staying within strict seismic vibration limits. Portions of the reinforced concrete wall ranged from 18 inches to 6 feet thick and were located as close as four inches from surrounding structures. It was critical to make precise, and controlled demolition throughout the project.
Maintaining the integrity of surrounding structures required strict vibration control. Seismic monitoring stations were installed to ensure demolition activity remained within CTA requirements, which ruled out traditional hammers and other impact demolition tools due to excessive ground vibration and the potential risk of structural damage. The project required a low-vibration solution capable of removing the wall with precision and control in a highly sensitive environment.
The solution was Antraquip’s AQ-4 hydraulic drum cutter combined with the AQC-180 carbide saw, both mounted on a CAT 325 excavator. Wider wall sections were removed using the AQ-4, which delivered controlled grinding of the reinforced concrete into manageable debris that could be efficiently loaded, and hauled away from the site to be used for recycling.
As the wall narrowed to sections measuring only 18 inches wide, the project required an even more controlled removal process. The AQC-180 carbide saw equipped with depth limiters was used to create precise relief cuts that allowed concrete sections to be safely separated and lowered into manageable pieces for removal. This approach gave the contractor greater control over demolition sequencing while eliminating the risk of damage to nearby structures.
The combination of Antraquip’s AQ-4 and AQC-180 allowed the entire embankment wall to be removed safely, efficiently, and without exceeding seismic vibration limits. The controlled cutting process significantly reduced ground vibration compared to conventional hammer methods while improving demolition efficiency through consistent material sizing and easier cleanup. Increased production rates and efficient material handling helped accelerate demolition progress, allowing the project to stay ahead of schedule.
As demolition projects continue to move closer to active infrastructure and urban environments become increasingly sensitive to vibration and noise, contractors are turning to advanced cutting technology that offers greater precision and control than traditional impact tools. This project demonstrates how Antraquip hydraulic drum cutters and carbide saws provide a safe, dependable, and efficient solution for complex demolition applications where vibration control and structural protection are critical to success.

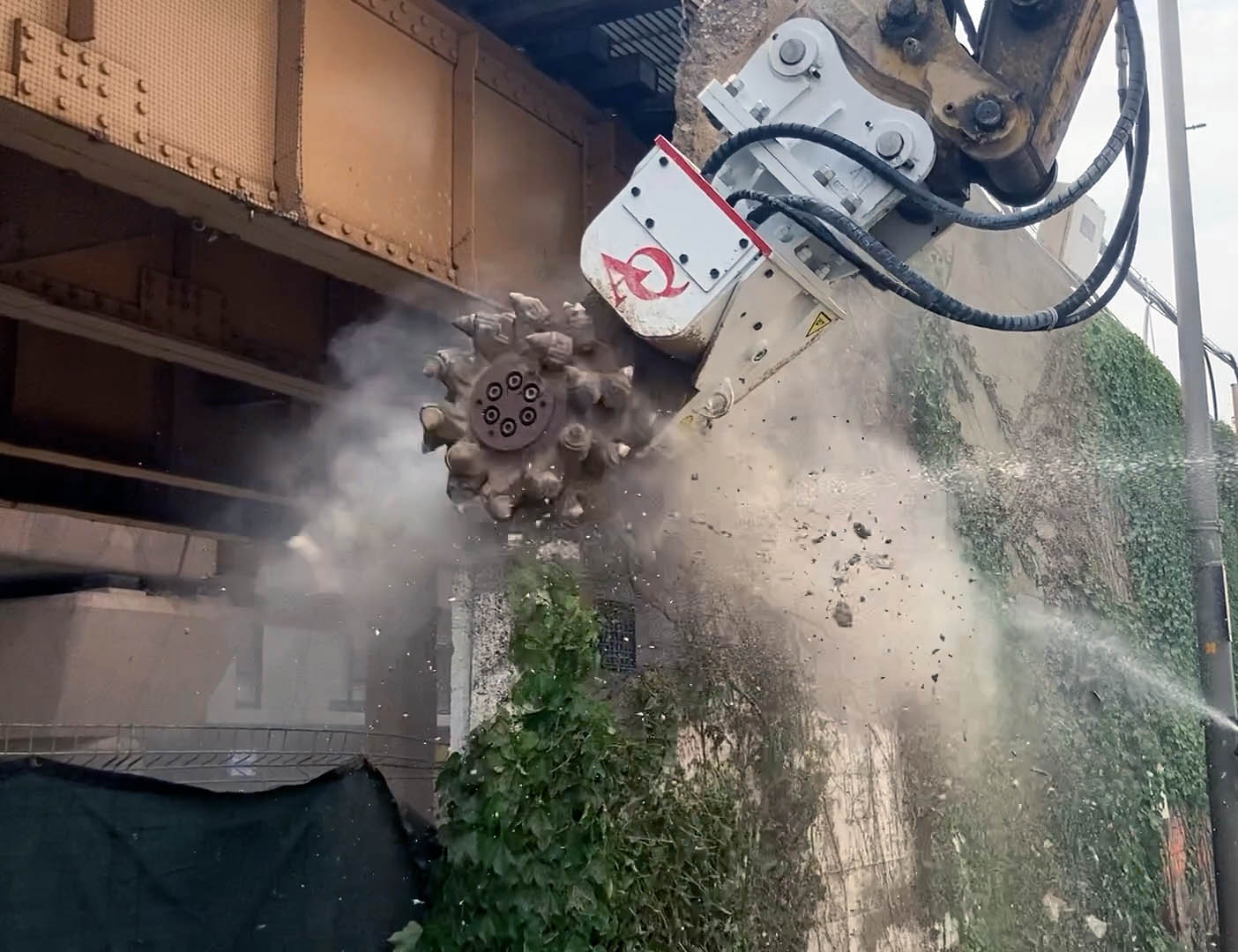

AQ-4 mounted on a CAT 325 excavator removing wider sections of the concrete wall

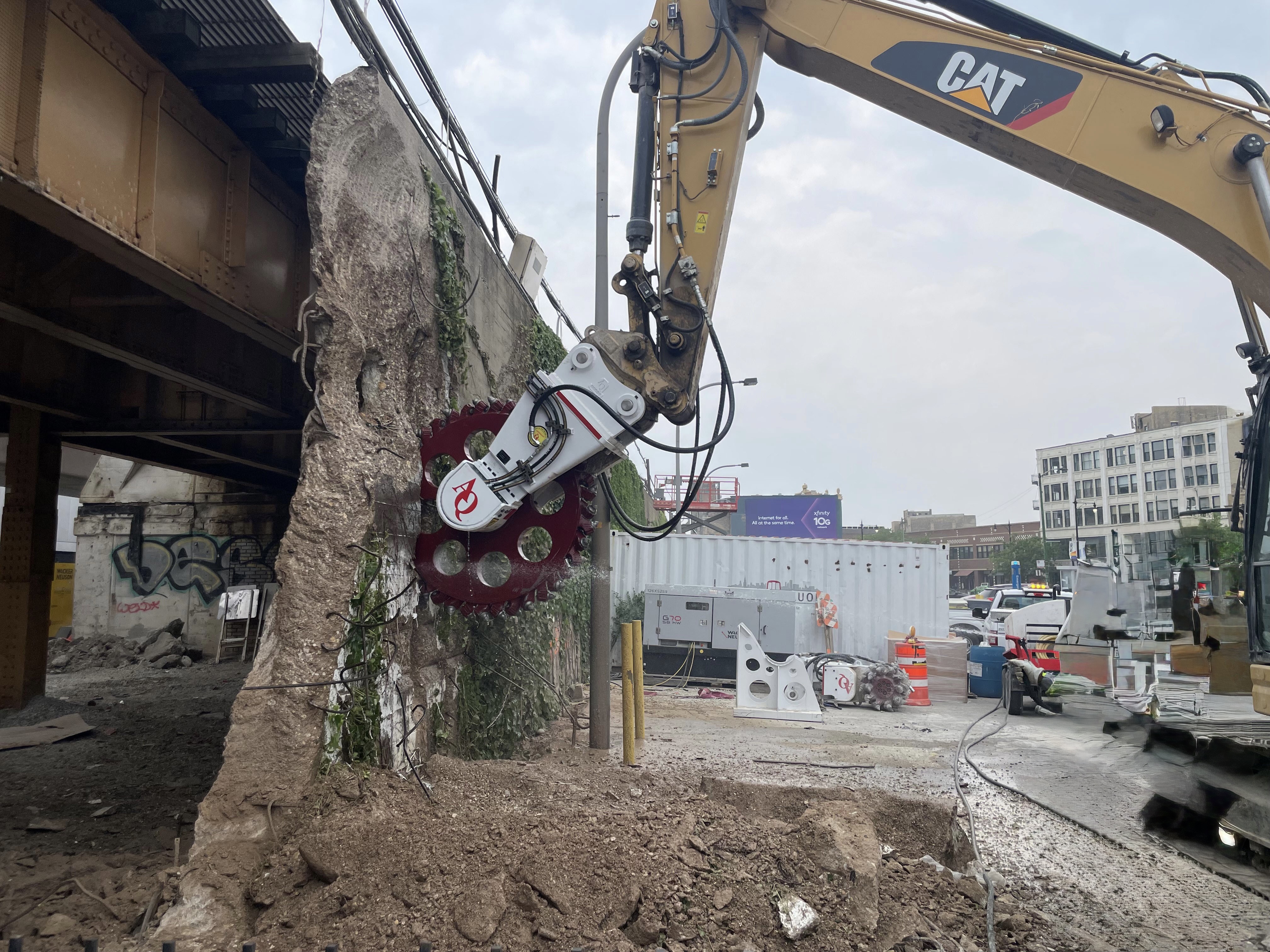

AQC-180 (mounted on a CAT 325 excavator) cutting through the concrete for relief cuts

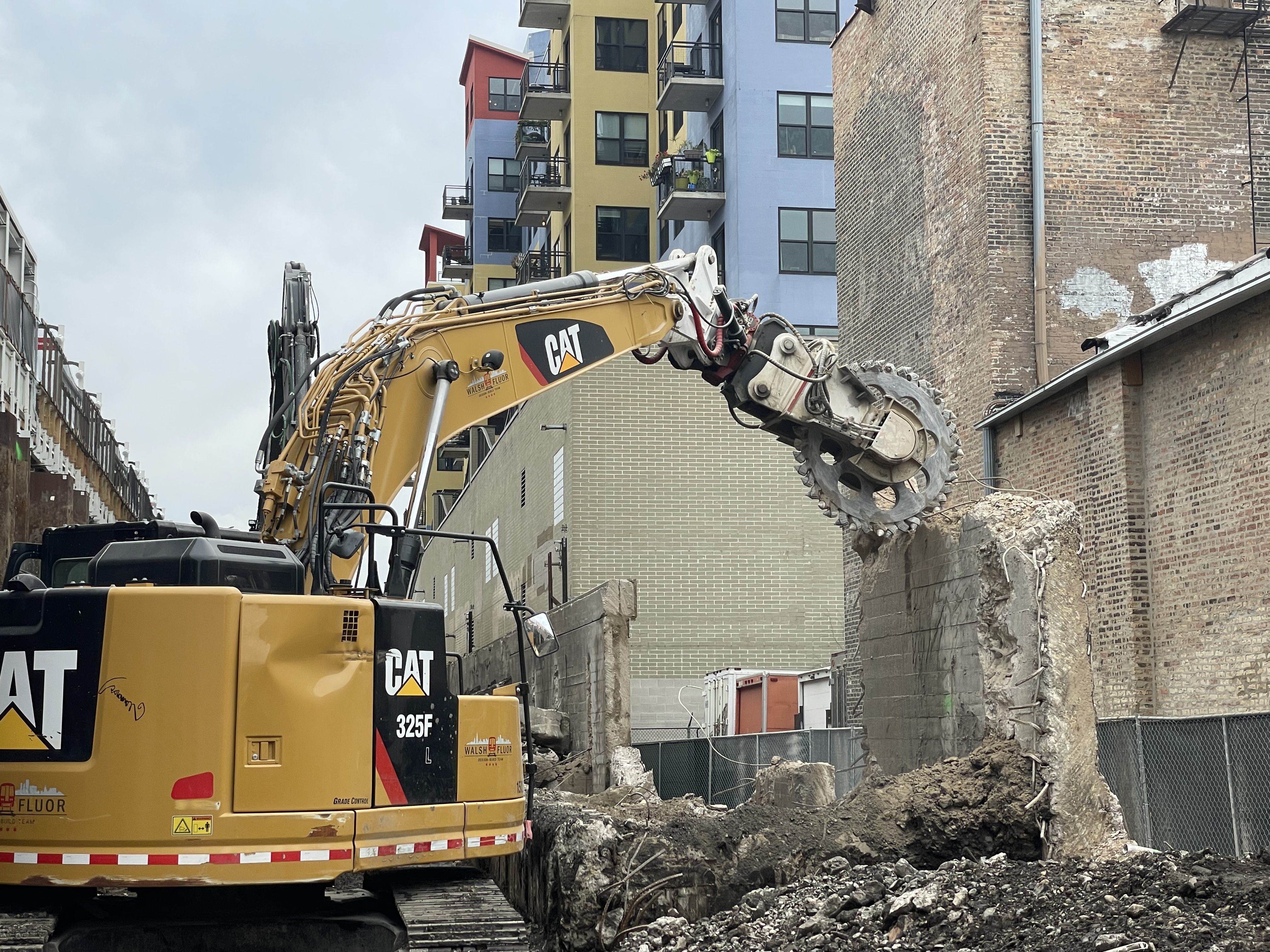

AQC-180 (mounted on a CAT 325 excavator)
