Soil Mixing Equipment

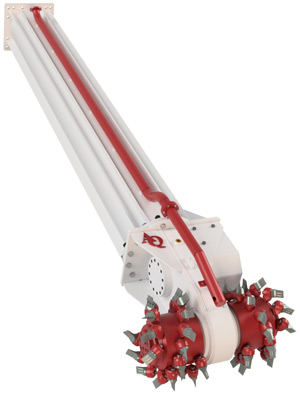

Soil mixing attachments can be used on various excavator sizes
Antraquip has a large selection of soil mixers for remediation throughout the world. Our soil mixing attachments are used for remediation and soil mixing/blending. Various styles of mixing heads are available to suit any specific application and can be used on various excavator sizes.


Antraquip soil mixing attachments can be supplied with customized extensions to help protect hydraulic hoses and incorporate hard lines for required additives needed for remediation, blending process.



Soil Mixing and Remediation with Antraquip Mixing Attachments

Soil Mixing is a geotechnical method used to improve the bearing capacity and stability of ground. A similar technique is used for remediation of contaminated sites.

Soil Mixing is a geotechnical method used to improve  the bearing capacity and stability of marginal  ground.  Clay, peat,  silt, sediment, sludge,  or dredged material  can  be treated to address areas of inadequate strength or stability to support new infrastructure or to prevent erosion.  The method utilizing Antraquip  mixers  relies  on thoroughly mixing binders into subject material  while the material  remains in-place  or insitu. Soil Mixing is quick and  cost effective  compared to other  methods such  as:  excavation and  replacement of incompetent soil or compaction by surcharge. Treated ground  can  be accessed with heavy  equipment in as short  a time as one  day.

BENEFITS OF INSITU SOIL MIXING

  • Fast ground  improvement, treated material  can  support  advancing equipment often within 24 hours,  support  additional  structures often within a week.
  • Sustainable development - Soil mixing facilitates  reuse of existing on-site  material
  • Conservation of Replacement Fill - No need to use  off-site material  as replacement fill, avoids  excavation and  transportation costs
  • Conserves Landfill Space, unsuitable soil is treated, not disposed
  • Lower Carbon Footprint than excavation, transportation and replacement
  • Cost-effective Use of Binders, accurate binder  dosing  and thorough mixing
  • Reuse of Industrial By-products  fly ash  and  slag may be used as binders

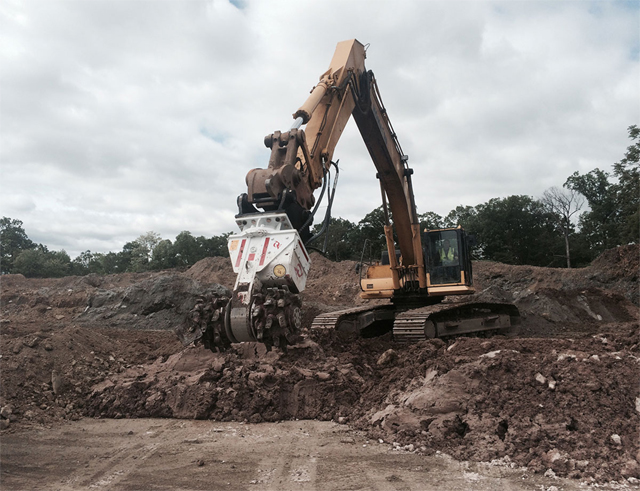

Antraquip  Soil Mixers can  also  be used to remediate contaminated soil, sediment, sludge or waste. The technology is called  Solidification/Stabilization (S/S) when  used for environmental remediation. S/S immobilizes  or destroys hazardous constituents within the treated material.  lnsitu S/S  is frequently  used to treat  contaminated property allowing subsequent development - "Brownfield Redevelopment".


CIVIL ENGINEERING USES OF SOIL MIXING

  • Stiffening of pavement and rail subgrades
  • Stabilization of embankments
  • Protection of adjacent structures from transmitted vibration
  • Improvement of clay, silt, or peat soils
  • Improve bearing capacity of soil for building foundations
  • Modification of very soft soils for tunnel boring
  • Support of noise attenuation barriers
  • Low permeability ground water protection layers
  • Reduction of soil hydraulic conductivity
  • Erosion control
  • Protection layers for permafrost and frost
Fig 2: In-Container Treatment

Fig 3: Excavator  Mobility/Articulation

ENVIRONMENTAL ENGINEERING USES OF SOIL MIXING

  • Reuse of dredged material management areas for infrastructure development
  • Treatment of dredge within barges producing engineered fill
  • Recycling of the industrial by-products
  • Solidify free-liquids
  • Increase compressive strength
  • Reduce hydraulic conductivity
  • lnsitu solidification/stabilization (ISS)
  • Immobilize hazardous constituents
  • Destroy hazardous constituents by lnsitu chemical oxidation or reduction (ISCO or ISCR)

Soil Excavator

Soil Excavator
ANTRAQUIP STABILIZATION PRODUCTS

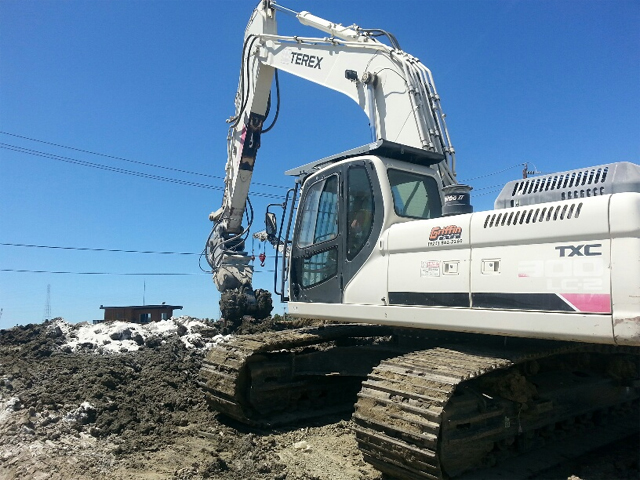

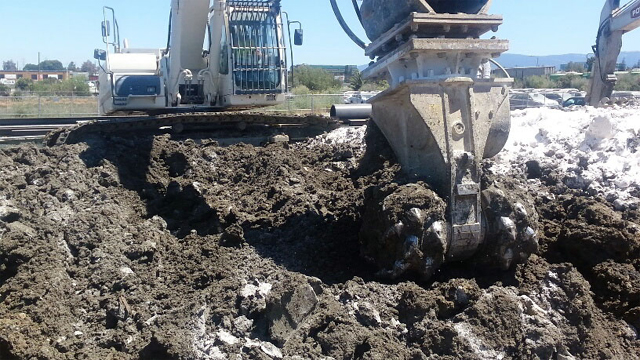

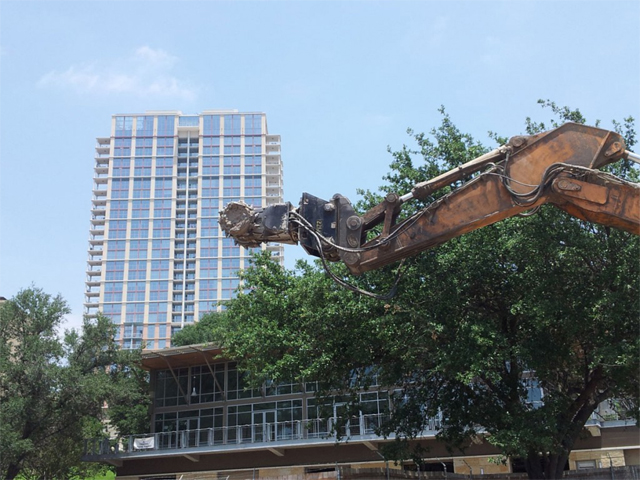

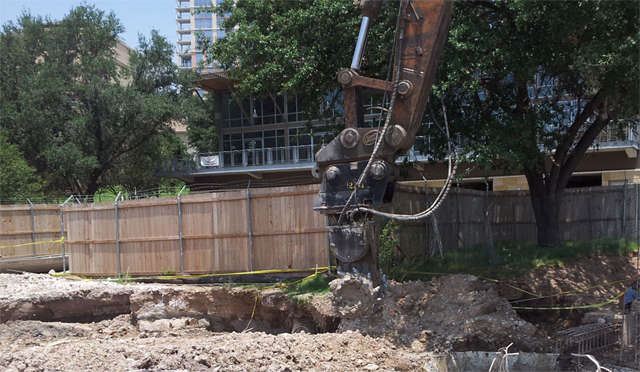

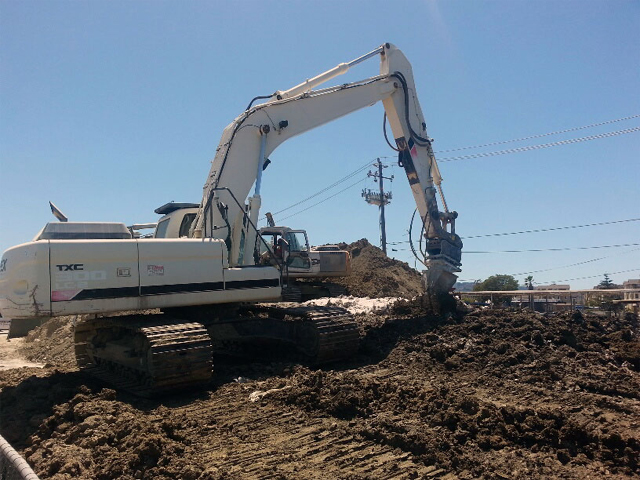

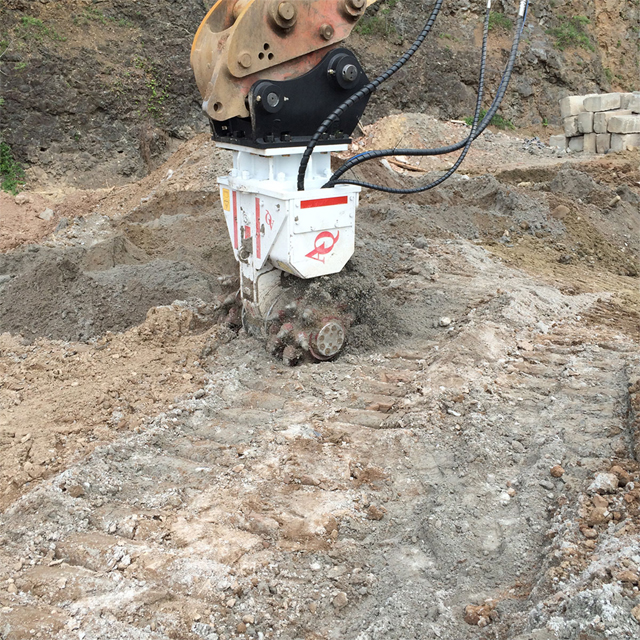

Antraquip Soil Mixers are attachments for conventional excavators. The Soil Mixers are easily mounted on an excavator with pin mounts. Antraquip Soil Mixers are powered by the excavator's hydraulic system. Attaching , a Soil Mixer converts the excavator into a powerful and versatile mixing tool. The mixing drums penetrate and mix a variety of material in place or insitu. Materials can be mixed anywhere the excavator can go, utilizing the excavator's mobility and articulation to reach difficult or soft areas. Binders or chemical agents are delivered to
the area of the highest mixing shear by an attached 80-mm (3-inch) diameter pipe and
injected via nozzle located between the mixing drums.


POWER & DURABILITY TO MIX SOIL

Soil Mixers are able to effectively mix a variety of materials including: clay, silt, peat, sludge, sediment, dredged material, and contaminated soil. Antraquip engineers incorporate their extensive experience of manufacturing mining and rock cutting equipment into the design of Antraquip's Soil Mixers. The equipment is capable of operating in extreme conditions, including hard soil mixed with rock. Antraquip selects hydraulic motors and designs drivetrains and sealing systems to ensure long service life and durability in the most challenging environments. The teeth of the mixing head are available from carbide-tipped bits for mixing hard consolidated soil to wear-resistant "paddle" style tools for mixing high-water content dredged material or
soft peaty soi I.


CUSTOMIZED FOR CLIENT'S USE: BECAUSE ONE SIZE DO ES NOT FIT ALL

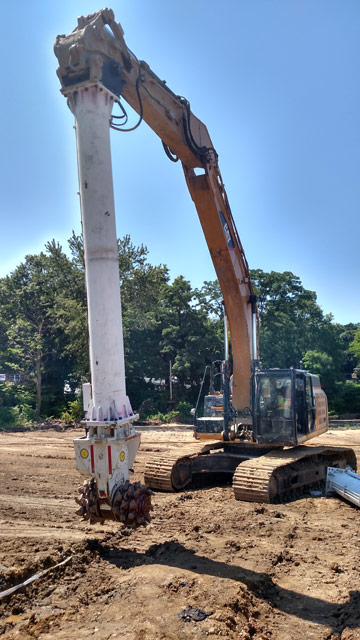

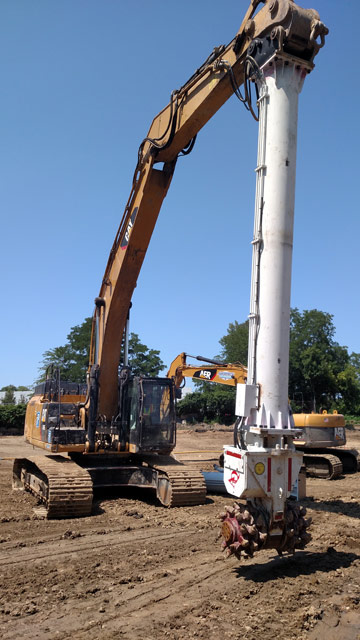

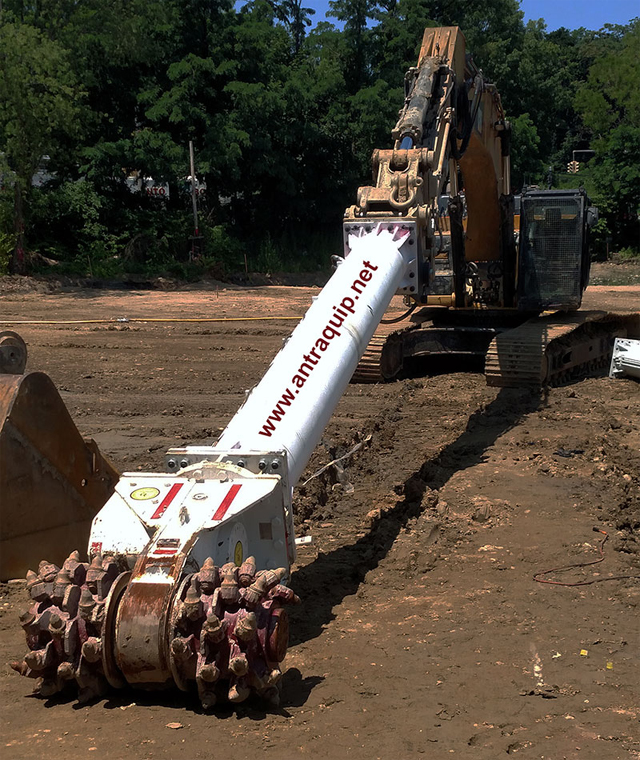

Antraquip Soil Mixers are custom-built to fit the customer's existing equipment. Antraqup Soil Mixers are available in four different mixing head sizes to match the carrying excavator's hydraulic system flow and pressures. Models to fit excavators from 15 to 70 tons. Stem lengths (extensions) are available from 2 meter (6 feet) to 7 meter (23 feet).

• Easily installed and operated off of standard auxiliary hydraulic system of the carrier
• Throttle rotation speed control allowing for desirable rpm for conditions (0-120 rpm)
• Maximum mixing power with torque capability of up to 34,000 N m (25,000 ft lb)
• Rugged gear box utilizing spur gears to maximize mixing power and life of hydraulic motor
• Robust mixing drums to maximize service life in any type of soil


DESIGNED AND MANUFACTURED IN THE USA
Made in the USA to the highest quality standards.
No exchange rates, shipping, customs, or part availability issues
