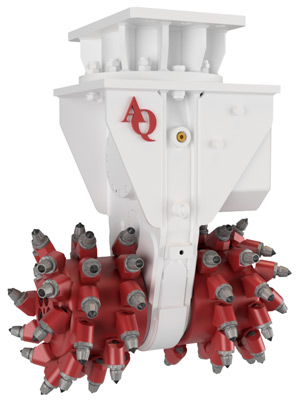

The AQ-1 hydraulic drum cutter head is a proven compact transverse model designed for small excavators and carriers. This machine offers an impressive amount of power and exceptional productivity when mounted on excavators in the 2-8t size class. Common applications include small trench excavation, precise concrete cutting, profiling and other specialized applications.
Recommended excavators/carrier size class: 2-8 tons
Hydraulic Power: 45HP (35kW)
| Technical Data | Unit | AQ-1 |
|---|---|---|
| Cutting Head Diameter (B) | in (mm) | 11 (280) |
| Cutting Head Width (A) | in (mm) | 21 (535) |
| Oil Flow | gpm (l/min) | 8-20 (30-75) |
| Max Pressure | psi (bar) | 5,800 (400) |
| Max Torque | ft lbs (Nm) | 2,625 (3.560) |
| Max Cutting Force | lbs (N) | 5,717 (25.440) |
| Operating Weight | lbs (kg) | 635 (290) |
Please note hydraulic power rating should not be exceeded
Quantity of cutter bits for standard drums: 60
